The Saturn printer is engineered for industrial production 3D models in FFF (FDM) technology. To respond to the constantly growing add-on market and Industry 4.0, the printer has been optimized for features that are crucial from the user's perspective, increasing the printer's capabilities.
A big field to show off

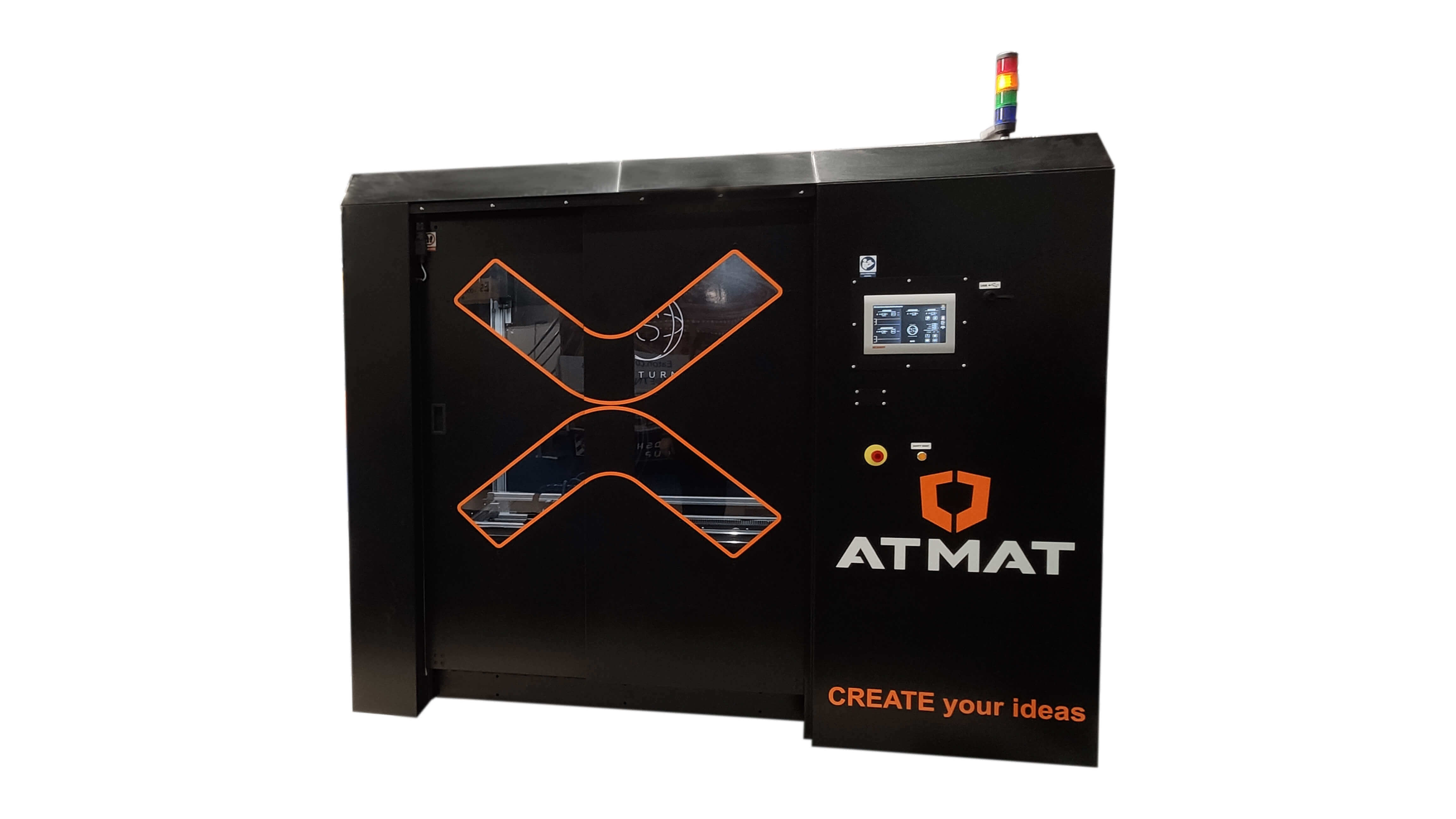

The ATMAT Saturn printer cannot be passed by indifferently - its large workspace (1200x1000x1000) protected by a sliding, lockable door catches the eye. The tight chamber of the device and the possibility of setting a different temperature range on the heating elements of the 3D printer allows printing from a wide range of filaments - PLA, PET-G, PA, ABS, or PVA (as a support material).
Large-scale SATURN 3D printer
ATMAT Saturn has two printing heads - the main one, having two extruders and an auxiliary one with a single extruder. The high-performance main head allows printing 3D models at high speed, processing up to 0.5 kg of filament per hour, while the auxiliary head is used to produce support structures and models requiring higher accuracy.
Industrial printer designed for production
The sealed filament cabinet on the right side of the Saturn 3D printer is the perfect solution for the industry. The materials are protected against external factors and the special containers prevent the filament from getting wet, even during long storage. This proprietary solution guarantees the stability of the 3D printer and consistent quality of materials, also after a long time.

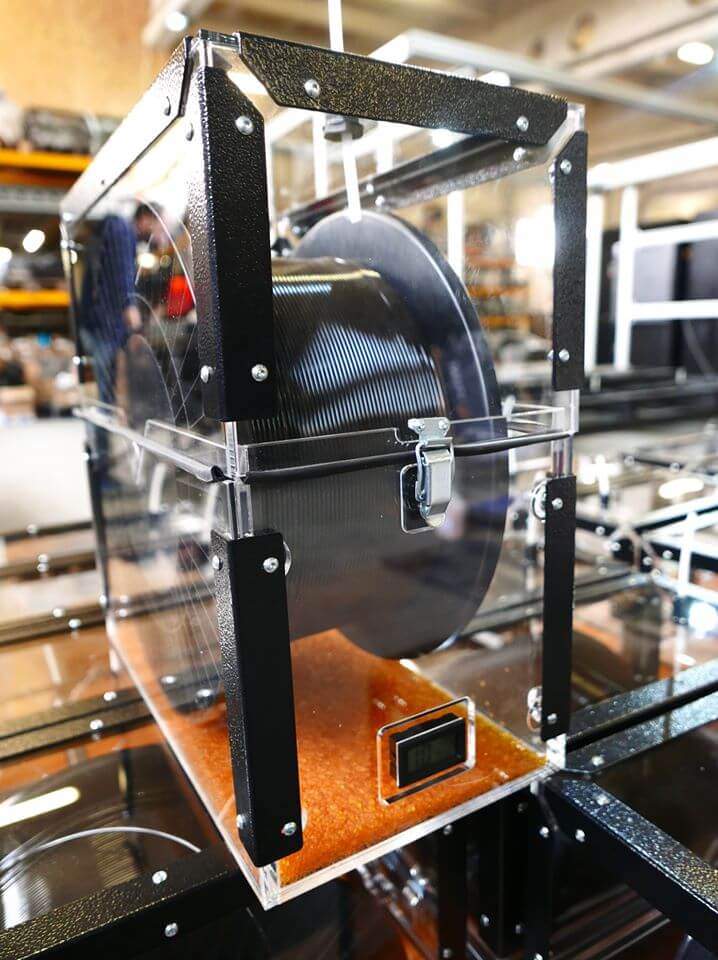

Polibox for printing material
In the filament cabinet, you will also discover sensors for the presence and flow of material and a mechanism for developing the filament - these three functions make the 3D printer work efficiently and give users the possibility to react immediately in case of any anomalies.
Intelligent 3D printer
The ATMAT Saturn printer is equipped with original software supporting the user at every step of work. The machine calibrates the position of the head about the work table and automatically levels the heads in concerning to each other. If the level of the XY frame is unbalanced, the user can use an automatic procedure allowing for its correct positioning. The intuitive touch screen control panel makes the work and operation of the 3D printer easier.

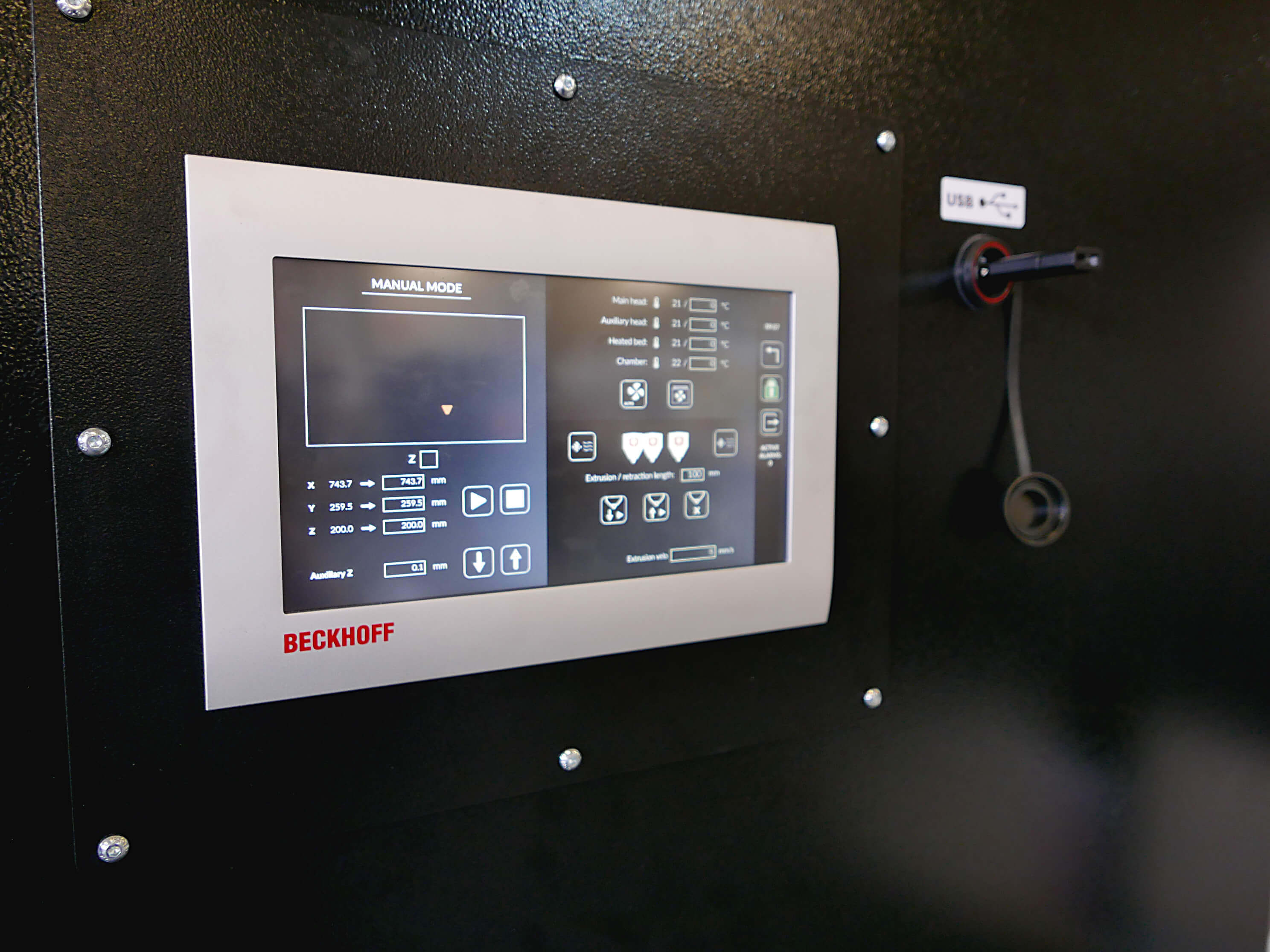

HMI touch panel
To conclude
Saturn takes users into a new dimension of production. The proprietary software and intelligent solutions adapted to industrial standards, which are equipped with a 3D printer, will improve the work in production factories and industrial halls.
The Saturn printer is available for sale. We invite you to contact ATMAT Sales Engineers to get an offer for this device: https://atmat.pl/contact
